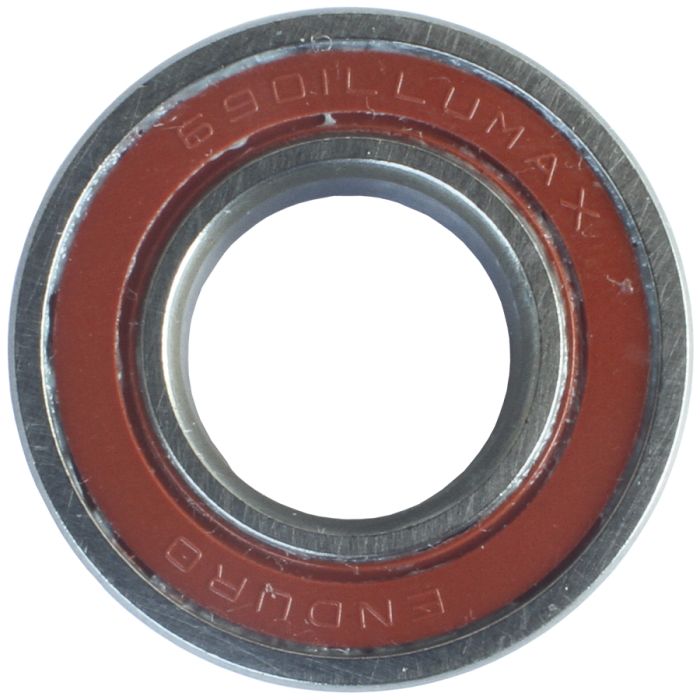

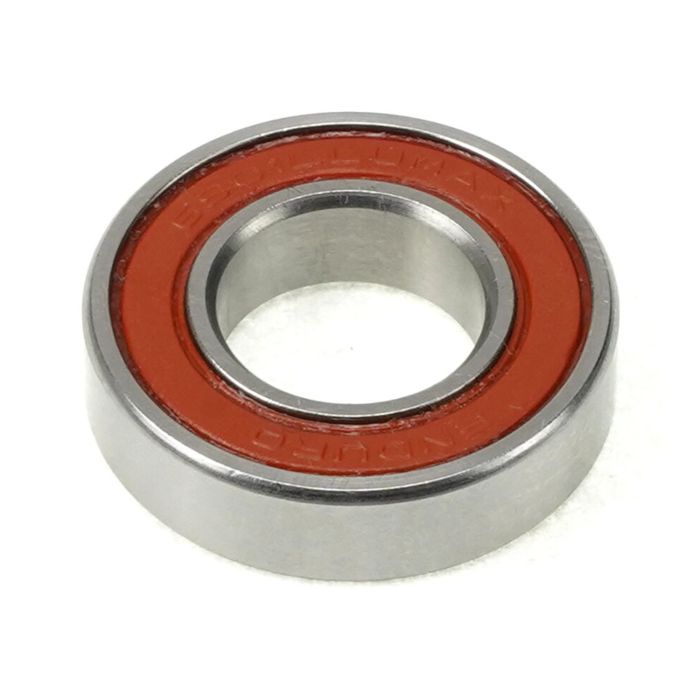

Roulement Enduro 6901 LLU MAX - ABEC 3 MAX (Radial) - 12x24x6

Roulement pour suspension

6901 LLU MAX - MAX-Design, ABEC-3, radial suspension bearing

Dimensions : 12mm 24mm x 6mm

Enduro bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. These bearings have 35-40% more load capacity than standard radial bearings. We accomplish this with a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. This bearing has been used as a suspension pivot bearing by a number of bicycle brands including intense and Guerrilla Gravity. This bearing is also commonly identified in the industry by these part numbers: W282091 300020056 The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements. Static load - 487lbf / 2.16kN

Photo non-contractuelle
