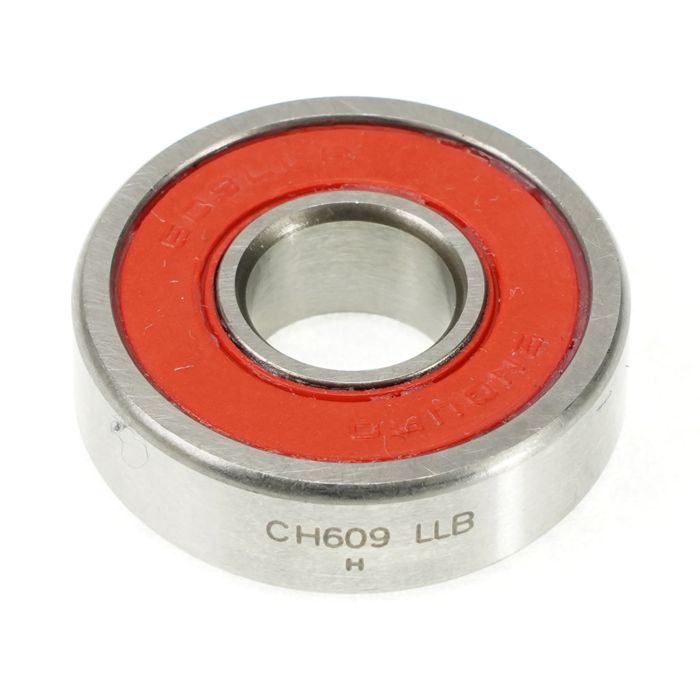

Roulement Enduro CH 609 LLB - Ceramic Hybrid (Radial) - 9x24x7

Roulement miniature

CH 609LB - Ceramic-Hybrid, ABEC-5 radial bearing - (C3 Clearance)

Dimensions : 9mm x 24mm x 7mm

This ABEC-5, Ceramic-hybrid bearing features deep-groove design 52100 High-Carbon chromium alloy races, with Grade 5 Silicon-Nitride Ceramic balls, dual-lip labyrinth (LLB) seals to withstand the outside elements, and to contain the 90% fill Kluber NBU52 ultra-smooth and sticky, water-proof grease. Si3N4 ceramic balls reduce bearing wear and increase bearing life by eliminating steel on steel contact within the bearing. This radial bearing has been used as a hub bearing by Mavic and as a pivot bearing though the MAX-type version of this bearing is better suited for suspension use. The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements. Static load - 322lbf /1.43kN

Photo non-contractuelle
