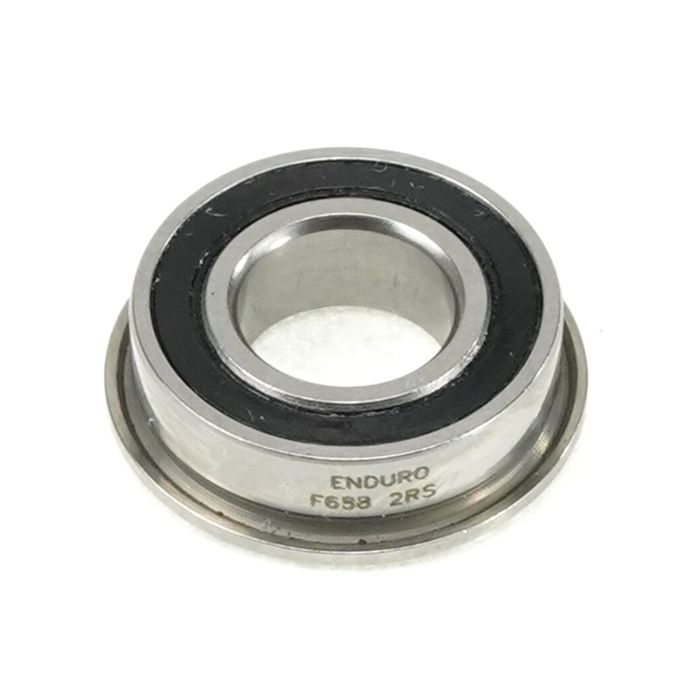

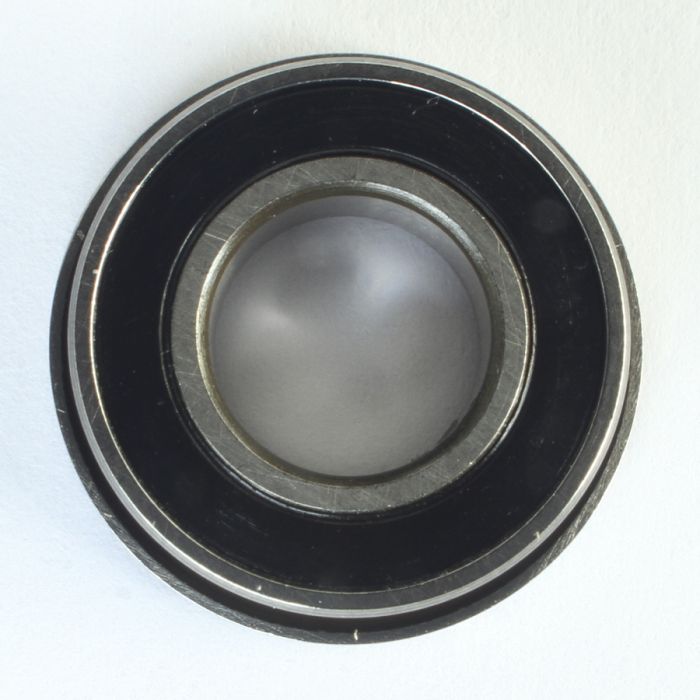

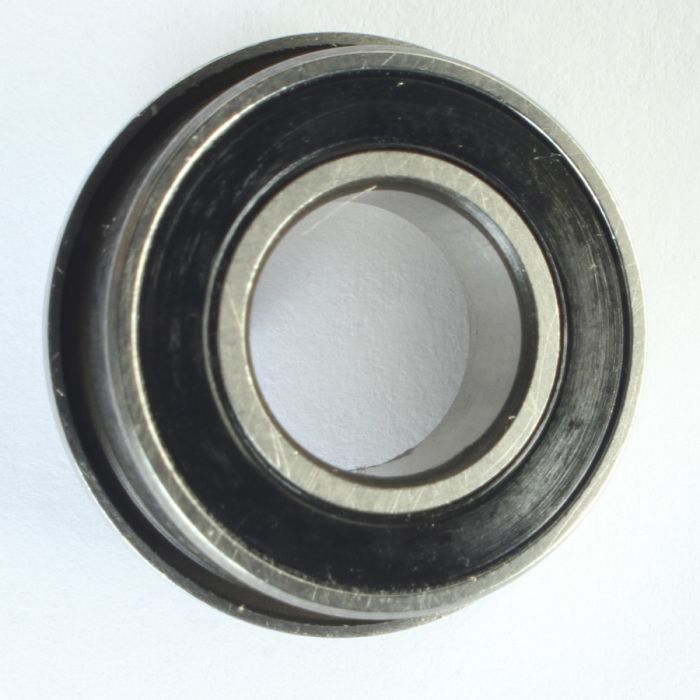

Roulement Enduro F688 2RS - ABEC 3 (Radial) - 8x16/18x5

Roulement pour suspension

698 LLU MAX-EE MAX-Design, Extended Inner Race, ABEC-3, radial suspension bearing

Dimensions : 8mm x 19mm x 6/10mm (1/3)mm

Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings provide greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. This bearing features a double-extended inner race that eliminates the need for extra spacers to connect suspension linkages. This bearing has been used as a suspension pivot bearing by Jamis. The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements. Static load - 355lbf / 1.58kN

Photo non-contractuelle
