Roulement Enduro 688 LLB A5 - ABEC 5 (Radial) - 8x16x5

Roulement miniature

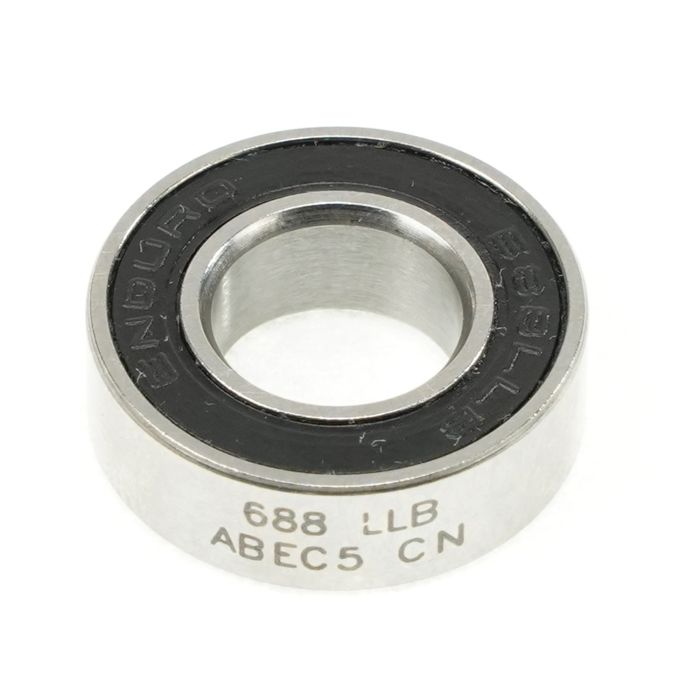

688 LLB A5 - ABEC-5 Radial Bearing - (CN clearance)

Dimensions : 8mm x 16mm x 5mm

This radial bearing has been used as a hub bearing and as a pivot bearing though the MAX-type version of this bearing is better suited for suspension use. This ABEC-5 radial bearing features 52100 high-Carbon Chromium alloy races paired with Grade 10 balls and dual-lip labyrinth (LLB) seals to withstand the outside elements, and to contain the 90% fill Mobil XHP 222 high pressure water proof synthetic grease. CN clearance specification is best for looser press-fit bearing bores. The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements. Static load - 162lbf / 0.72kN

Photo non-contractuelle
